Commercial Aluminum

About Commercial Aluminum

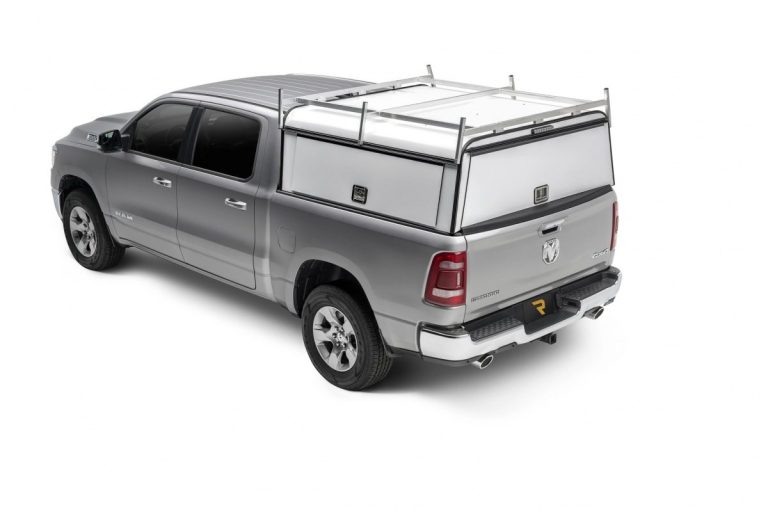

Get to work with an RealTruck A.R.E. commercial aluminum cap. Our rugged welded frame construction offers years of durable service, no matter what the weather or job. Choose between our DCU ® (.035 aluminum skin), DCU MAX ™ (.063 aluminum skin) or our Diamond Edition DCU ™ (.063 diamond plate aluminum skin) to outfit your truck. Each of our commercial aluminum models has weather-sealed doors with gas props, heavy-duty hinges, and locks to protect your valuables.

Standard Features

.035 aluminum exterior skin

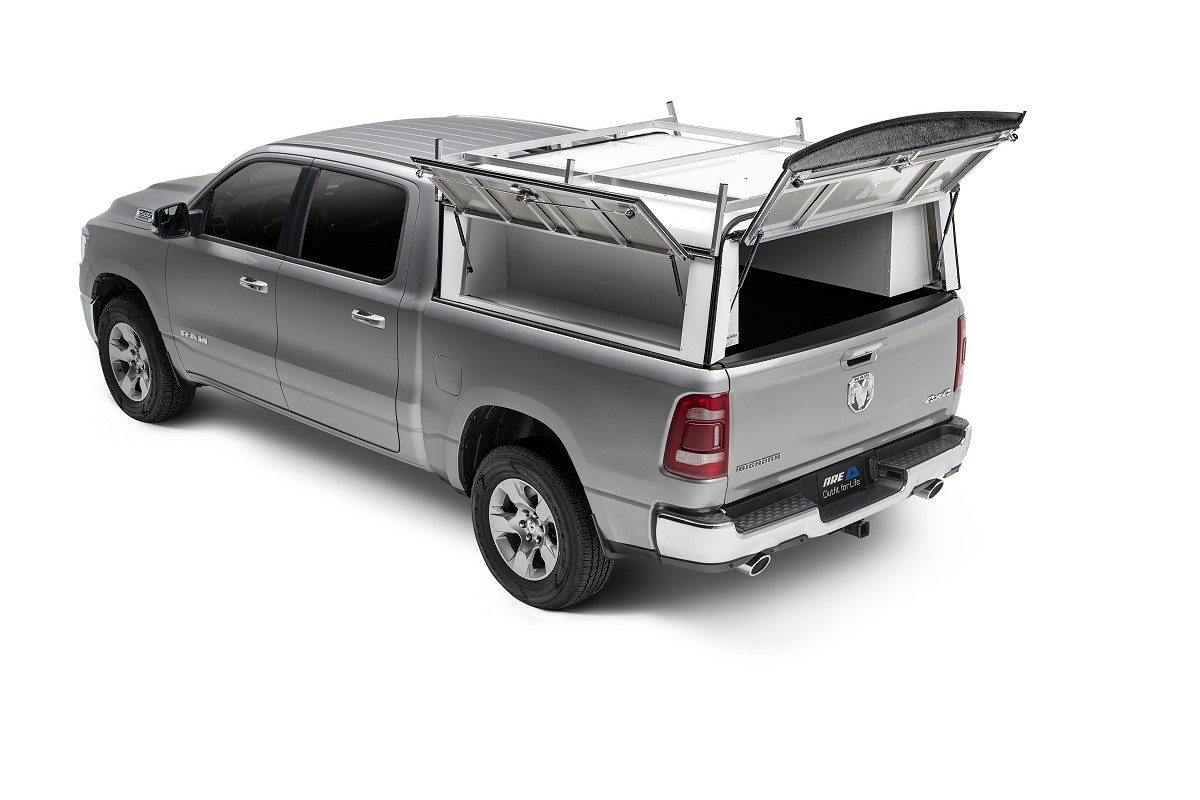

Full length side doors
Welded aluminum frame
Folding T-handles
3 Year Warranty
Made In America

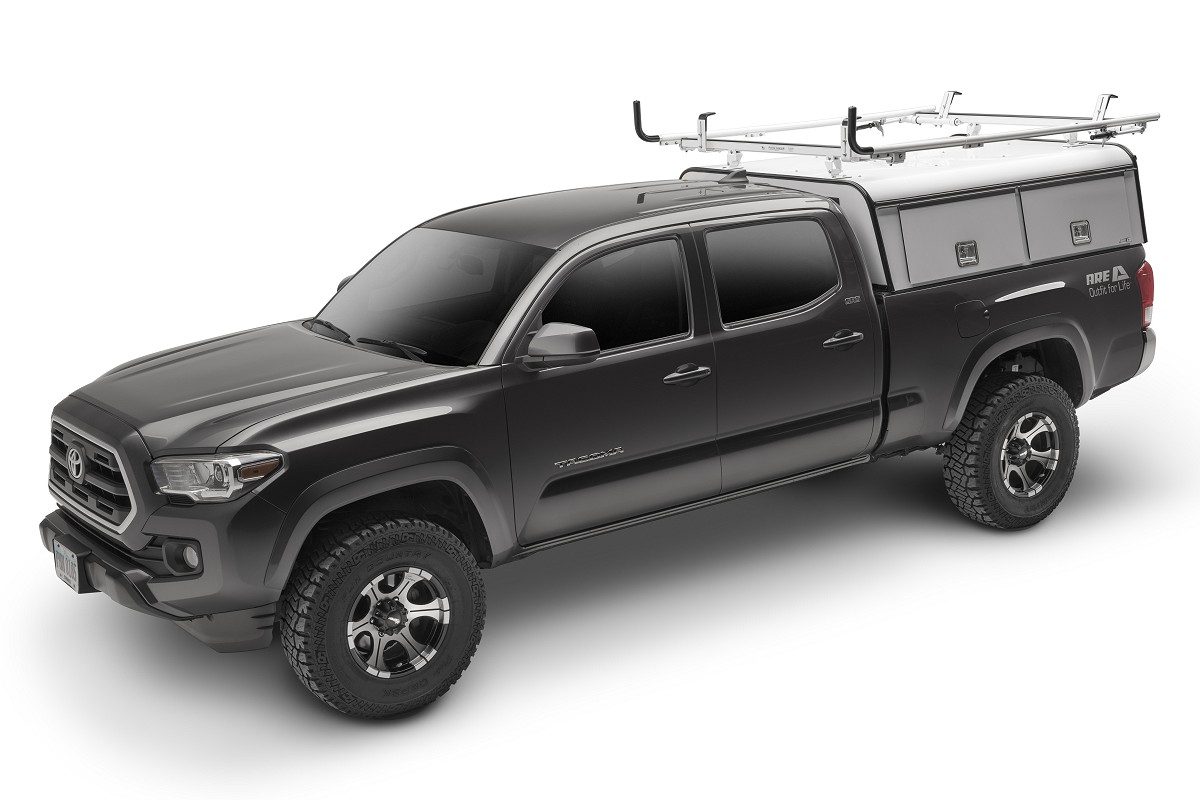

See Commercial Aluminum on My Truck

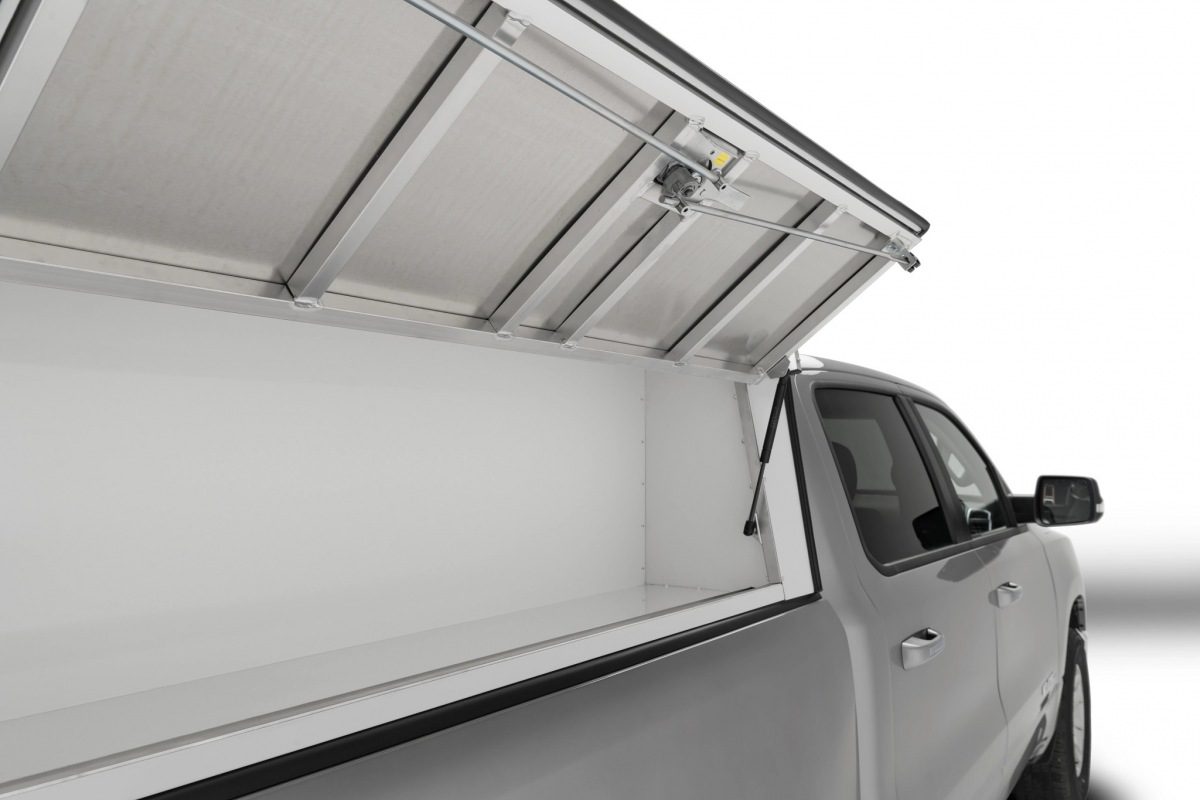

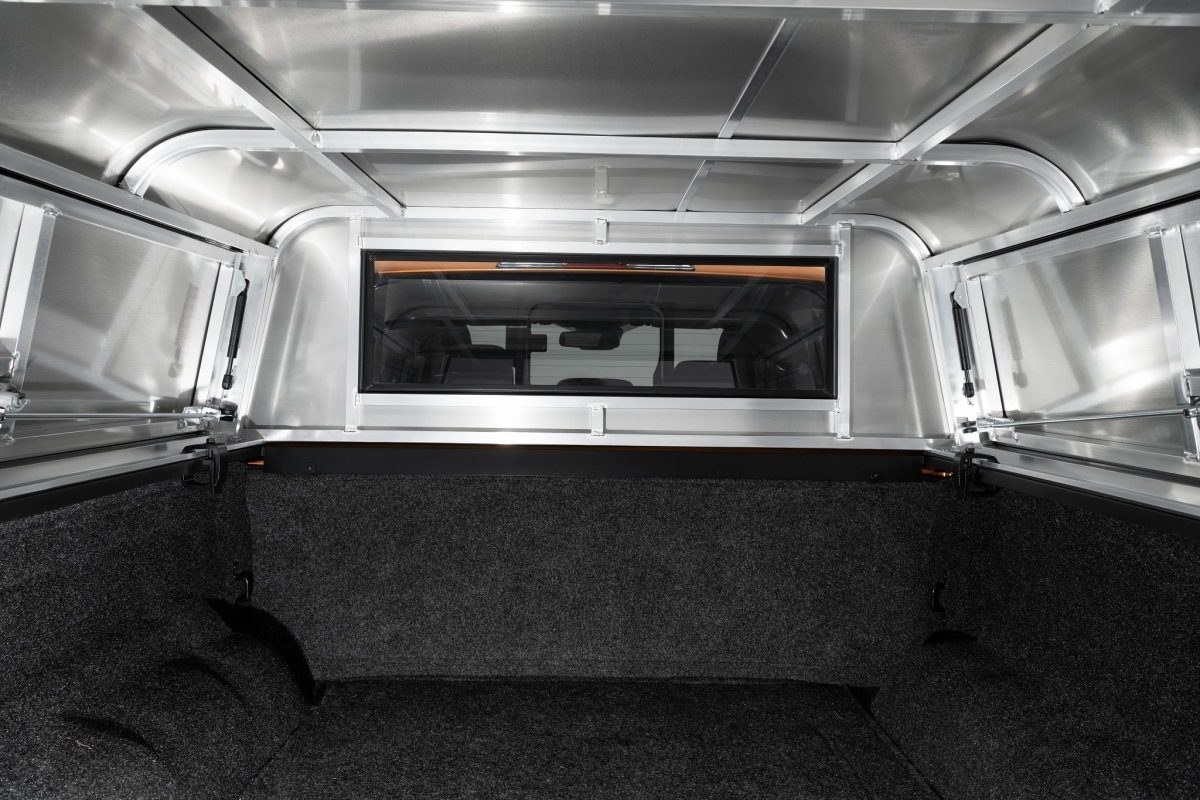

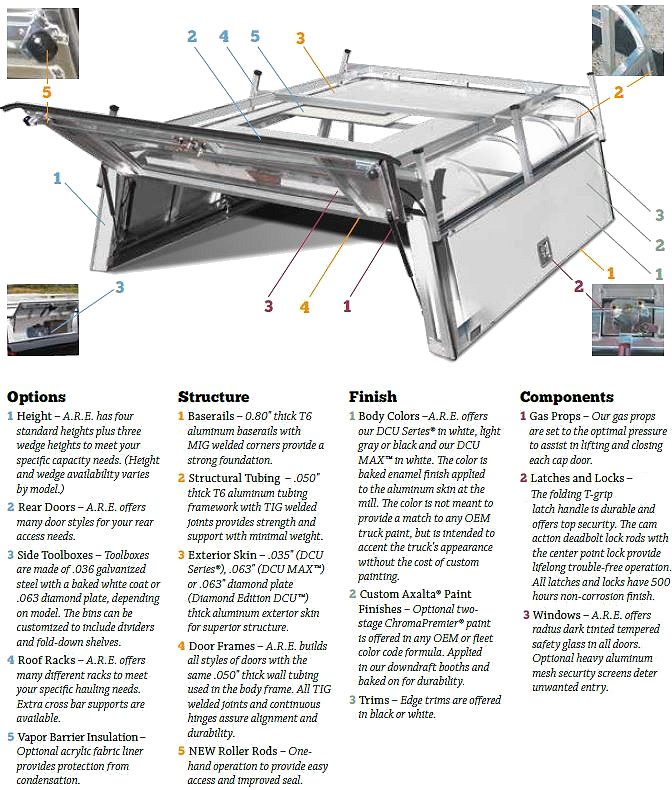

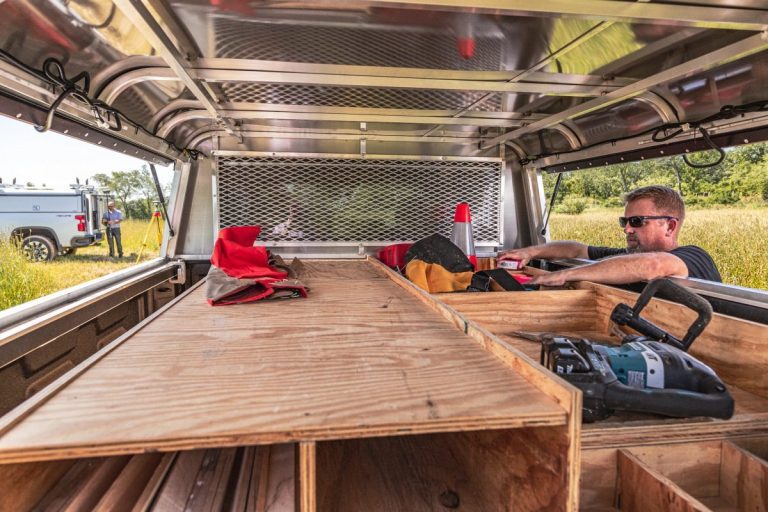

Commercial Aluminum Shell Construction

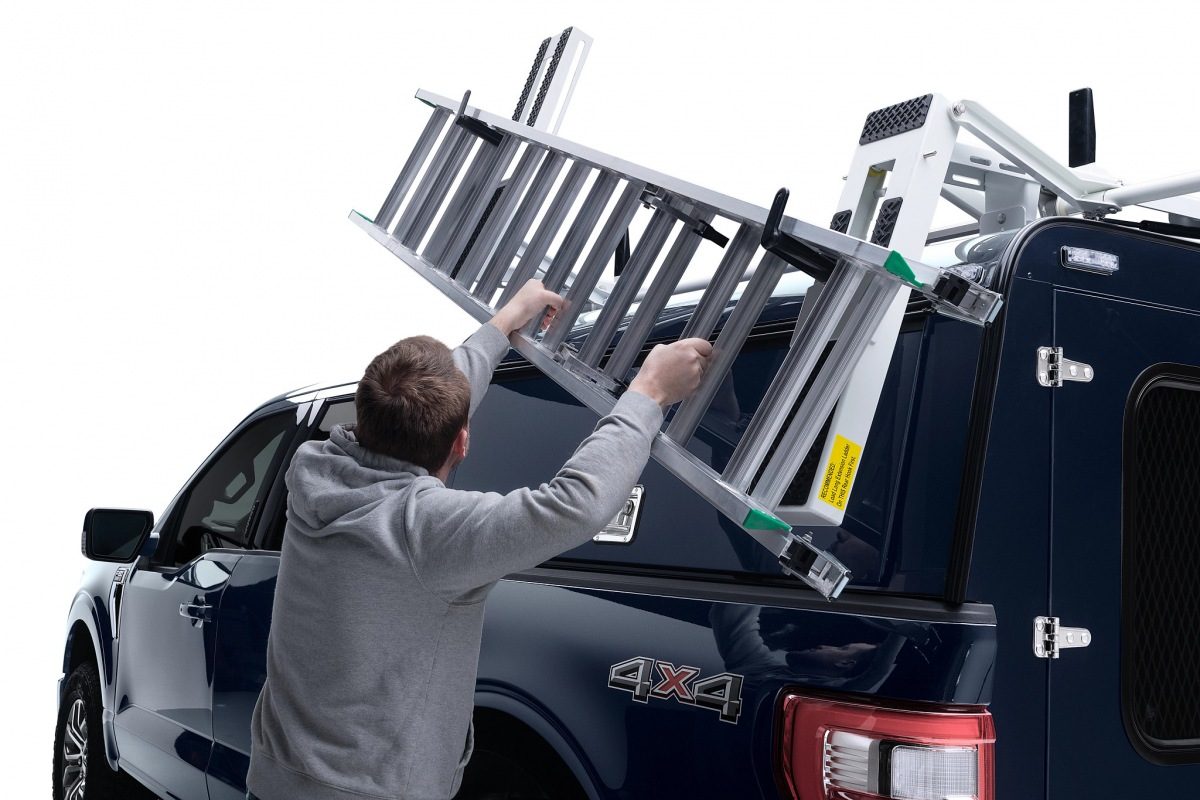

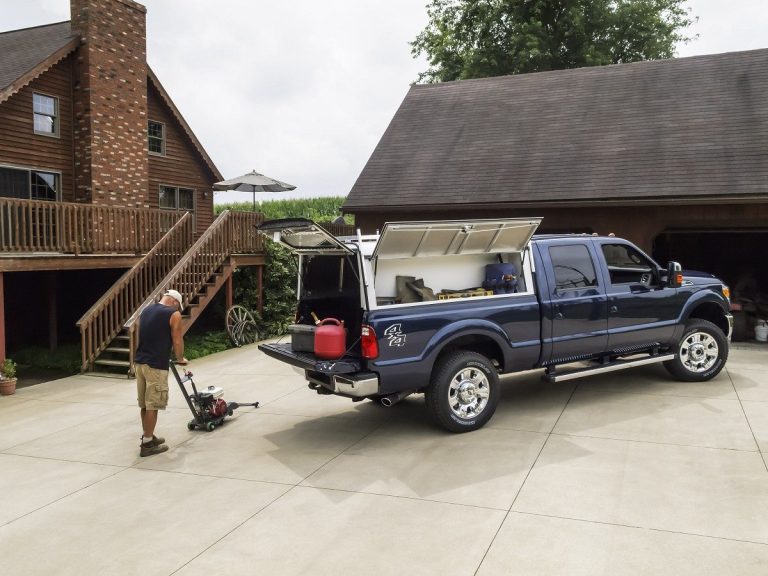

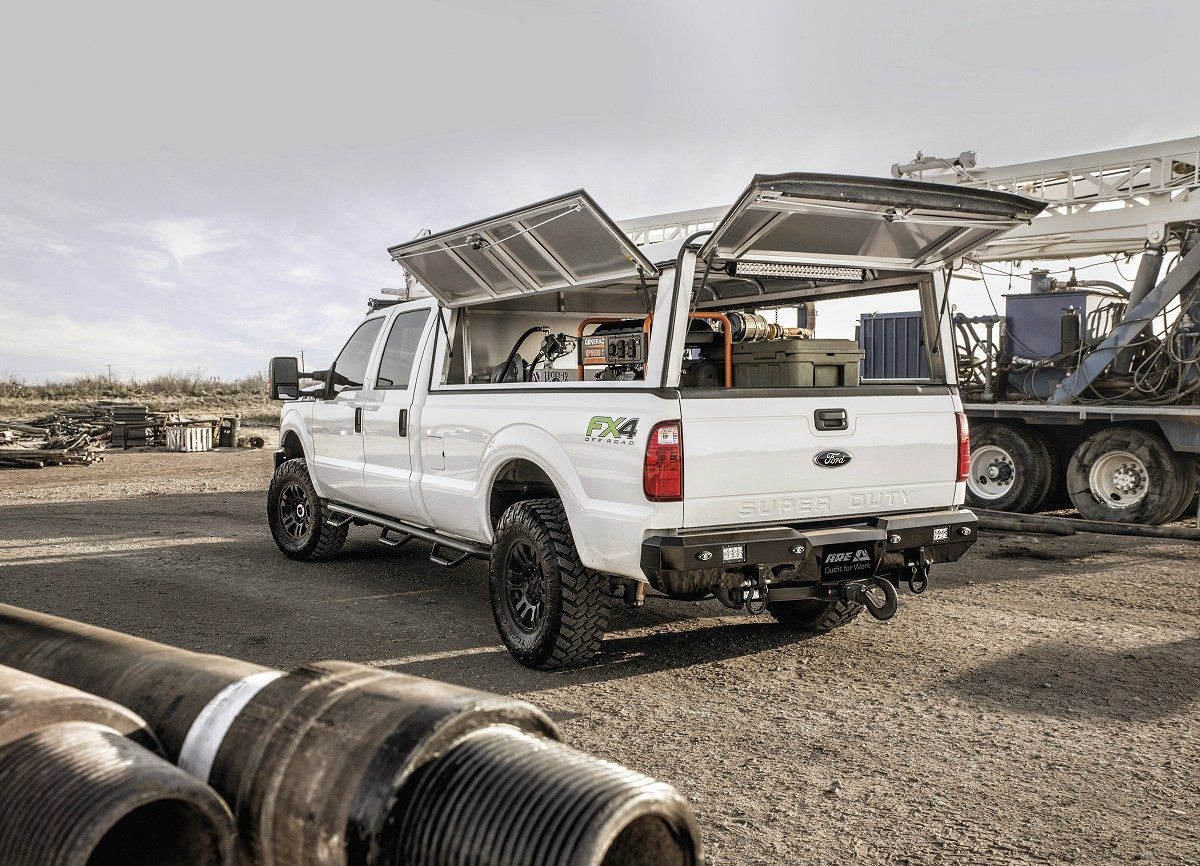

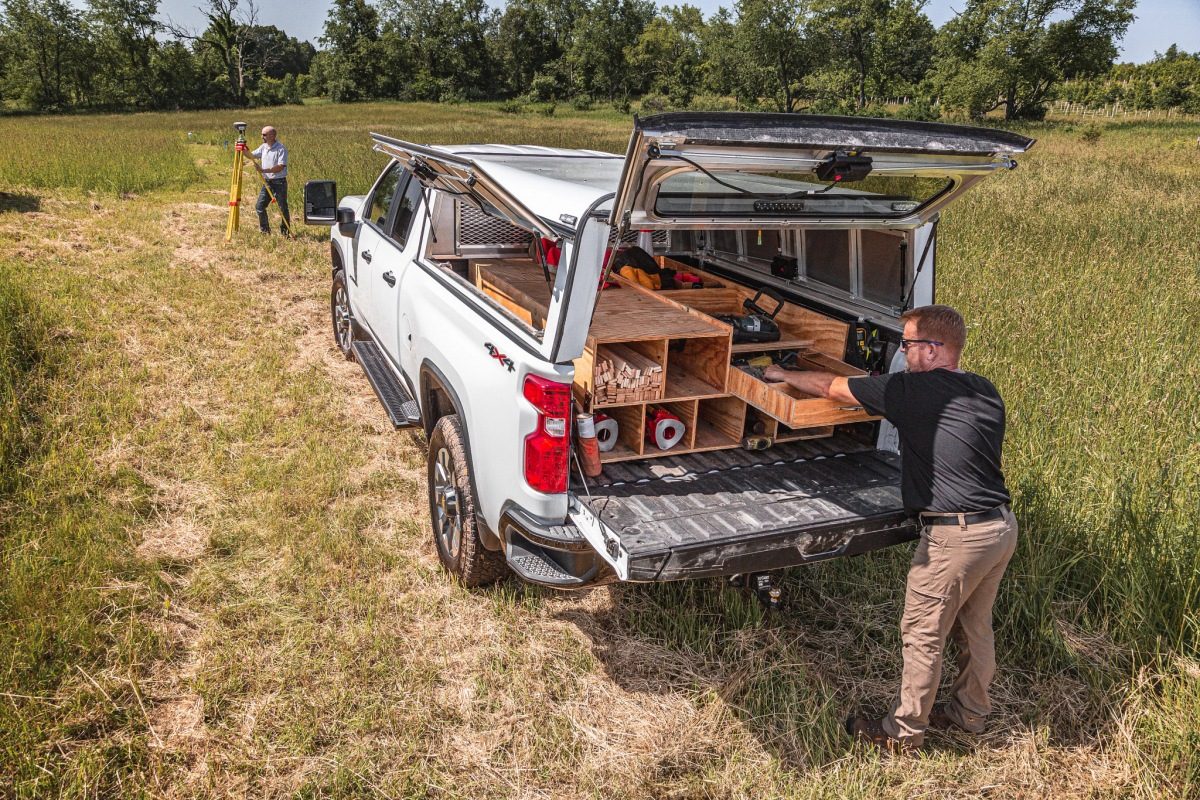

See Commercial Aluminum in Action

Commercial Aluminum Specifications

Deluxe Commercial Unit Series – All Sizes – Height X Width – Inches
Cap Height	Cap Length	1/2 Rear Door	Single Full Rear Door	Double Full Rear Door	Opening Opening Std. Single Side Door Full Length Full Length
23″	75″	T 18 x 45 1/2	35 x 31	35 x 42	16 3/8 x 66
23″	75″	B 18 x 51 1/2
23″	79″	T 18 x 45 1/2	39 x 31	39 x 48	16 3/8 x 70
23″	79″	B 18 x 60 1/2
23″	98″	T 18 x 53 1/2	39 x 31	39 x 48	16 3/8 x 91
23″	98″	B 18 x 60 1/2
Cap Height	Cap Length	1/2 Rear Door	Single Full Rear Door	Double Full Rear Door	Opening Std. Single Side Door Full Length
29″	75″	T 24 x 45 1/2	41 x 31	41 x 42	22 1/2 x 66
29″	75″	B 24 x 51 1/2
29″	79″	T 24 x 45 1/2	45 x 31	45 x 48	22 1/2 x 70
29″	79″	B 24 x 60 1/2
29″	98″	T 24 x 45 1/2	45 x 31	45 x 48	22 1/2 x 91
29″	98″	B 24 x 60 1/2
Cap Height	Cap Length	1/2 Rear Door	Single Full Rear Door	Double Full Rear Door	Opening Std. Single Side Door Full Length
36″	75″	T 24 x 53 1/2	45 x 31	45 x 42	22 1/2 x 66
36″	75″	B 24 x 51 1/2
36″	79″	T 24 x 53 1/2	50 x 31	50 x 48	22 1/2 x 70
36″	79″	B 24 x 60 1/2
36″	98″	T 24 x 53 1/2	50 x 31	50 x 48	22 1/2 x 91
36″	98″	B 24 x 60 1/2
Note: For Hatch Back Rear Door sizes, use full rear door column (Actual clearance will be 2″ wider than double full rear door due to construction of door frame from square tubing rather than flamed tubing). 97 – 03 Body F-150 LB has a 84″ long standard side door. * T = Top Dimension, B = Bottom Dimension ** Subtract 2″ from door opening width to allow for gas props

Visit Our Office for an In-Person Fitment Consultation

You can always visit the store for an in-person fitment consultation! We would love to meet you!

Give our INDOOR warehouse and INDOOR showroom a visit to meet the experts and get fit the right way, the first time!

The Commercial Shells Experts You Can Trust

Fit Commercial Aluminum to Your Truck

Are you ready to take the next step and give your truck the upgrade it deserves?

Camper Capital here to help, and we’re ready when you are.

Just fill out the form at the top to get started.
